Find out the serial number of the NVR
To search for an iso, you need to know the serial number of the NVR.

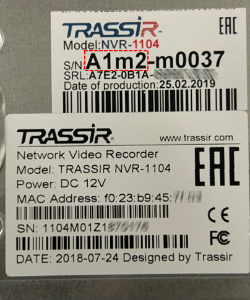

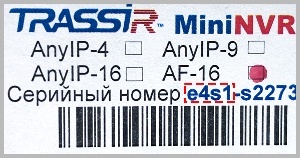

The serial number is indicated on the sticker, which is located on the back of the recorder, on the side of the connectors.
The Trassir OSS system is installed on a flash drive, which can be external (USB-flash) or embedded in the motherboard.
The ways to install the system on the built-in flash drive and USB flash are different.

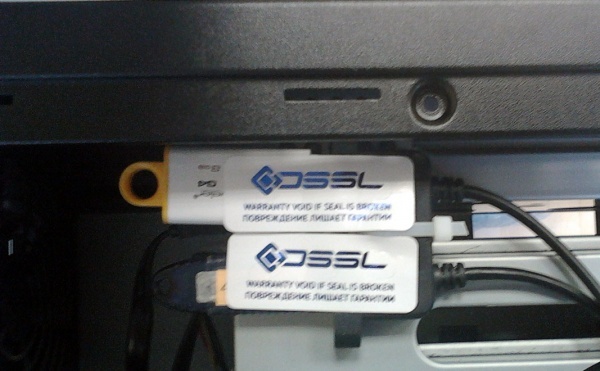

The USB-flash system disk and the security key are installed inside the recorder case.
Removing the seal sticker from the USB flash and the protection key does not affect the warranty on other components of the NVR
When flashing a new image, you will also need an up-to-date license file.
Sewing a license into an image when creating a system disk is not required.
It allows you not to lose the license file when resetting the registrar to factory settings. If you do not sew the license into the image, then at the first launch or after resetting to factory settings, the NVR will require a license file.
If there is no saved license file, you can get it in one of the following ways:
- If the NVR has Internet access and version 4.2 has been flashed, then the registrar can download the license file independently. Use the article Restoring a license using the TRASSIR Activation Wizard
- Write an email with a request to send a license file to support@dssl.ru . In the letter, specify your contact details and the number of the security key, which is indicated on the edge of the key case (you can send a photo).
Save the resulting file to a USB drive. Connect the drive to the registrar after downloading TRASSIR and a window appears with information about the absence of a license file. Click Copy License File... or Select the license file... and point to the license file on the USB drive.
- If an archive of logs and dumps of crashes was previously saved, TRASSIR (is formed by clicking on the Logs & Dumps of Crashes button... in the server settings), then the license file can be located inside the archive. Open or unzip the archive and check for a file named Trassir 3 License.txt . If there is such a file, save it to a USB drive. Connect the drive to the registrar after downloading TRASSIR and a window appears with information about the absence of a license file. Click Copy License File... or Select the license file... and point to the license file on the USB drive.
If you could not determine the serial number of the registrar or are not sure about choosing the necessary system image, then write an email to support@dssl.ru with information in the following form:
- Contact person
- Company
- City
- Telephone
- Security key number
- A photo of the recorder housing from the connectors (all inscriptions must be readable)
When creating a new image for a registrar with a system disk on USB-flash, we recommend taking a new USB disk with a size not less than that specified in the system image selection table.
The brand, model and type of the drive (USB-2.0, USB-3.0) do not matter, but we recommend using any proven, well-known brands.
USB-flash with the new image can be installed in any USB connector, but do not forget to disconnect the old system flash drive.
Possible firmware methods
- For models with a system disk on USB-flash, there are two ways to flash the system image:
- Firmware from the ISO.
This option is the simplest, it is carried out directly from under Windows and allows you to use an image with the current version of the TRASSIR software.
But with this method, it is not possible to sew a license into the system and at the first start of the system, as well as later, when resetting to factory settings, you will need to re-add the license file. - Firmware with using an iso with a virtual machine under Linux..
This option is somewhat more complicated and requires the installation of a virtualization program in Windows. But it allows you to sew a license into the system image and at the first start or reset to factory settings, the license will be saved in the registrar.
- Firmware from the ISO.
- For models with built-in memory or with M disks.2 SSD method is used using a specially created USB flash drive with USBProduction
If for some reason it is not possible to flash the built-in system disk, then contact our technical support.
Image Selection
TRASSIR Client \ MiniClient
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| C1 C1m1 | USB-flash | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | BIOS Features \ Boot Option #1 – UEFI |
TRASSIR MiniNVR
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| E2 E2m1 E2s1 E2s2 | USB-flash 8GB | Error: Page Not Found |
DuoStation
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| L1 L1m1 | USB-flash 8GB | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | Boot \ CMS(Compatibillity Support Module) - Enabled |
DuoStation Pro
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| L3 L3m1 L3m3 L3u1 L3u2 L3u3 L3u4 | USB-flash 32GB or USB-flash 16GB | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) |
TRASSIR Nexus \ Absolute
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| M6m2 M6m5 | USB-flash 32GB | Boot \ Security Boot menu \ OS Type = Other OS |
TRASSIR QuattroStation
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
M6 | USB-flash 32GB | Error: Page Not Found | Boot \ Security Boot menu \ OS Type = Other OS |
QuattroStation Pro
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| M6m4 M6m7 M6s4 | USB-flash 32GB | Error: Page Not Found | Boot \ Security Boot menu \ OS Type = Other OS Ai Tweaker \ CPU Power Managment \ Enhanced Intel SpeedStep Technology = Disabled Secure Boot \ Boot Option #1 = UEFI: JetFlashTranscend Advanced \ APM \ Restore AC Power Loss = Power ON |
TRASSIR UltraStation(-I)
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| H4 H4rn1 | SATA SSD | Error: Page Not Found | Advanced \ Boot Feature \ Restore On AC Power Loss – Power On Boot \ UEFI Boot Device BBS Priorities \ 1st Device - UEFI OS Boot \ Hard Disk Device BBS Priorities \ 1st Device - Hard Disk:P0: INTEL SSD... Boot \ 1st Boot Device - UEFI OS |
NeuroStation Compact
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| G5m1 G5m2 G5u1 | USB-flash 16GB | Go to Advanced Mode by pressing F6 Advanced \ Chipset Configuration \ Primary Graphics Adapter = Onboard Advanced \ Chipset Configuration \ Restore on AC Power Loss = Power ON Boot \ Boot Option #1 = UEFI: JetFlashTranscend Boot \ Full Screen Logo = Disabled Save settings and exit (F10 and Yes) |
Neurostation
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
G1m1 | USB-flash 32GB | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | Go to Advanced Mode by pressing F6 Advanced \ Chipset Configuration \ Restore on AC Power Loss = Power ON Boot \ Boot Option #1 = UEFI: JetFlashTranscend Boot \ Full Screen Logo = Disabled Save settings and exit (F10 and Yes) |
NeuroStation Base
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| G3m4 | SSD M.2 128GB via PCI adapter or USB flash 32GB | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | Go to Advanced Mode by pressing F6 Advanced \ Chipset Configuration \ Primary Graphics Adapter = Onboard Advanced \ Chipset Configuration \ Restore on AC Power Loss = Power ON Boot \ Boot Option #1 = UEFI: JetFlashTranscend или PS128GPM280SSDR Boot \ Full Screen Logo = Disabled Save settings and exit (F10 and Yes) |
NeuroStation Pro
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| G3m3 G3u1 | SSD M.2 128GB via PCI adapter or USB flash 32GB | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | Go to Advanced Mode by pressing F6 Advanced \ Chipset Configuration \ Primary Graphics Adapter = Onboard Advanced \ Chipset Configuration \ Restore on AC Power Loss = Power ON Boot \ Boot Option #1 = UEFI: JetFlashTranscend или PS128GPM280SSDR Boot \ Full Screen Logo = Disabled Save settings and exit (F10 and Yes) |
TRASSIR NVR-7xxx
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
| M15m1 | USB-flash 32GB | Error: Page Not Found Error: Page Not Found How to burn system (OVA) image TRASSIR OS to USB-flash (instruction) How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | Security \ Secure Boot = Disable Boot \ Boot Options Priorities \ Boot Option #1 = UEFI: JetFlashTranscend Advanced \ Chipset Configuration \ Restore AC Power Loss = Power ON Save settings and exit (F10 and Yes) |
TRASSIR NVR-8xxx
| Serial number | System Disk | System image | BIOS Settings |
|---|---|---|---|
G3m5 | SSD M.2 128GB via PCI adapter or USB flash 32GB | Error: Page Not Found Error: Page Not Found How to burn an (ISO) system image from TRASSIR OS to USB-flash (instruction) | Go to Advanced Mode by pressing F6 Advanced \ Chipset Configuration \ Primary Graphics Adapter = Onboard Advanced \ Chipset Configuration \ Restore on AC Power Loss = Power ON Boot \ Boot Option #1 = UEFI: JetFlashTranscend или PS128GPM280SSDR Boot \ Full Screen Logo = Disabled Save settings and exit (F10 and Yes) |
