resources/gui_and_objects/figures.py
This module is designed to display figures on the channel.
Figures display only works for local channels - the script cannot display channels on a remote server.

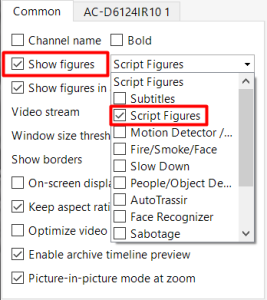

In order to see the figures, it is necessary to enable "display of figures and subtitles from scripts" in the View Options. More in the Operator's manual: Camera window interface settings
For the display, use the method draw(channel_guid, *figures), where:
channel_guid (str): Guid of a channel.*figures- List of figures to be displayed on the channel.
For most figures, you need to specify coordinates, which are in range [0, 100].
In this case, [0, 0] are the coordinates of the upper left corner and [100, 100] are the coordinates of the lower right corner.
To clear all figures on a channel, use the method host.figure_remove(channel_guid)
List of possible figures with examples:
line(xy_1, xy_2, color="#1FC619", width=2)
xy_1 (List[int, int])- Coordinates of the line's beginning.xy_2 (List[int, int])- Coordinates of the line's end.color (str, optional): Line color, #1FC619 by default.width (int, optional): Line width, 2.0 by default.
import figures
channel_guid = "uR76TlcA" # Change to guid of a channel
figures.draw(
channel_guid,
figures.line([0, 0], [100, 100], color="#FF0000", width=30),
figures.line([100, 0], [0, 100], color="#FF0000", width=30),
figures.line([0, 50], [100, 50], color="#00FF00"),
figures.line([50, 0], [50, 100], color="#00FF00"),
)

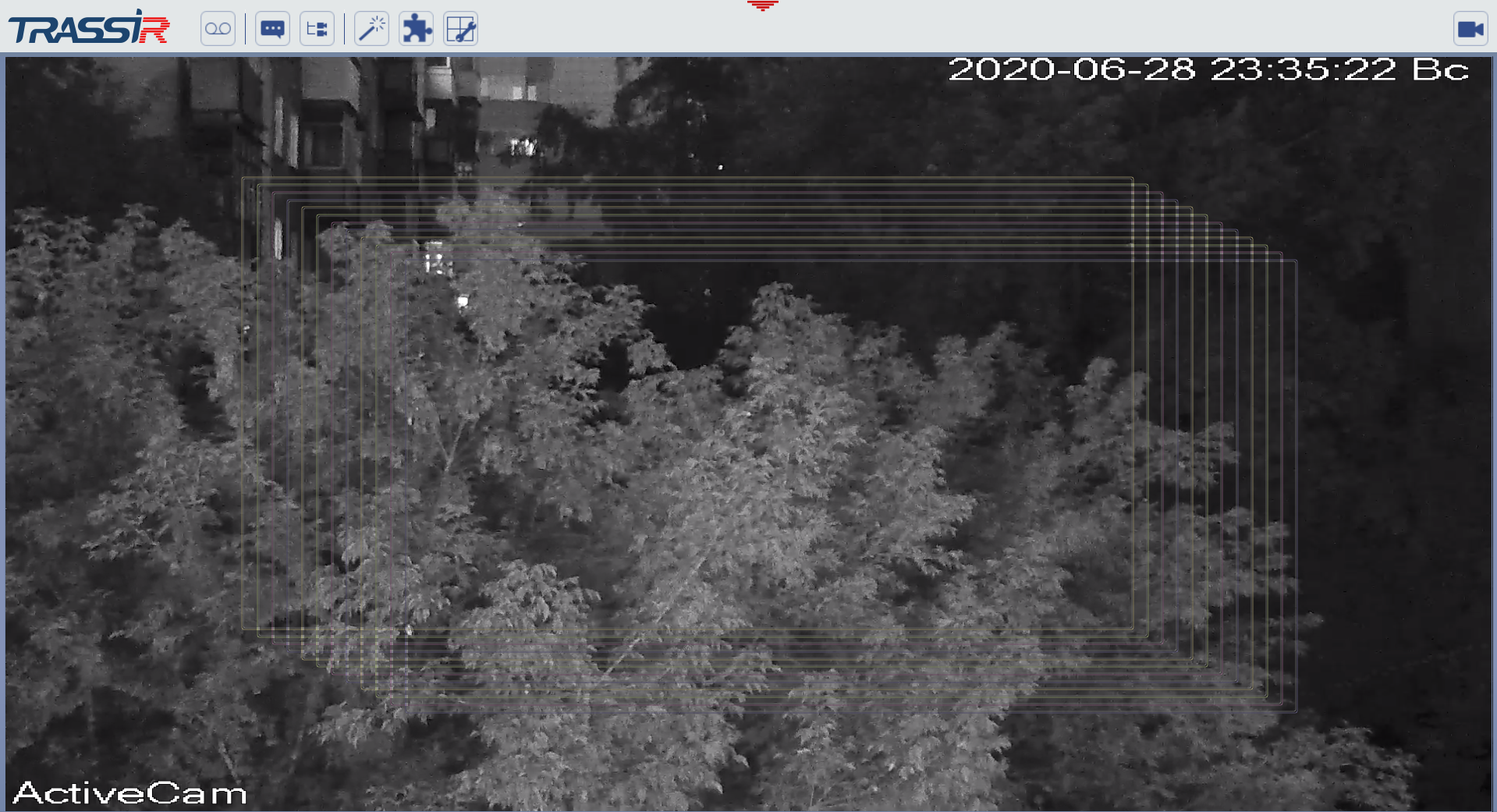

rect(xy_1, xy_2, color="#1FC619")
xy_1 (List[int, int])- Top left corner coordinates.xy_2 (List[int, int])- Lower right corner coordinates.color (str, optional)- Line color, #1FC619 by default.
import figures
channel_guid = "uR76TlcA" # Change to guid of your channel
figures.draw(
channel_guid,
figures.rect([16, 16], [76, 76], color="#FFEFB0"),
figures.rect([17, 17], [77, 77], color="#E3F7AB"),
figures.rect([18, 18], [78, 78], color="#DB97C7"),
figures.rect([19, 19], [79, 79], color="#A199D2"),
figures.rect([20, 20], [80, 80], color="#FFEFB0"),
figures.rect([21, 21], [81, 81], color="#E3F7AB"),
figures.rect([22, 22], [82, 82], color="#DB97C7"),
figures.rect([23, 23], [83, 83], color="#A199D2"),
figures.rect([24, 24], [84, 84], color="#FFEFB0"),
figures.rect([25, 25], [85, 85], color="#E3F7AB"),
figures.rect([26, 26], [86, 86], color="#DB97C7"),
figures.rect([27, 27], [87, 87], color="#A199D2"),
)

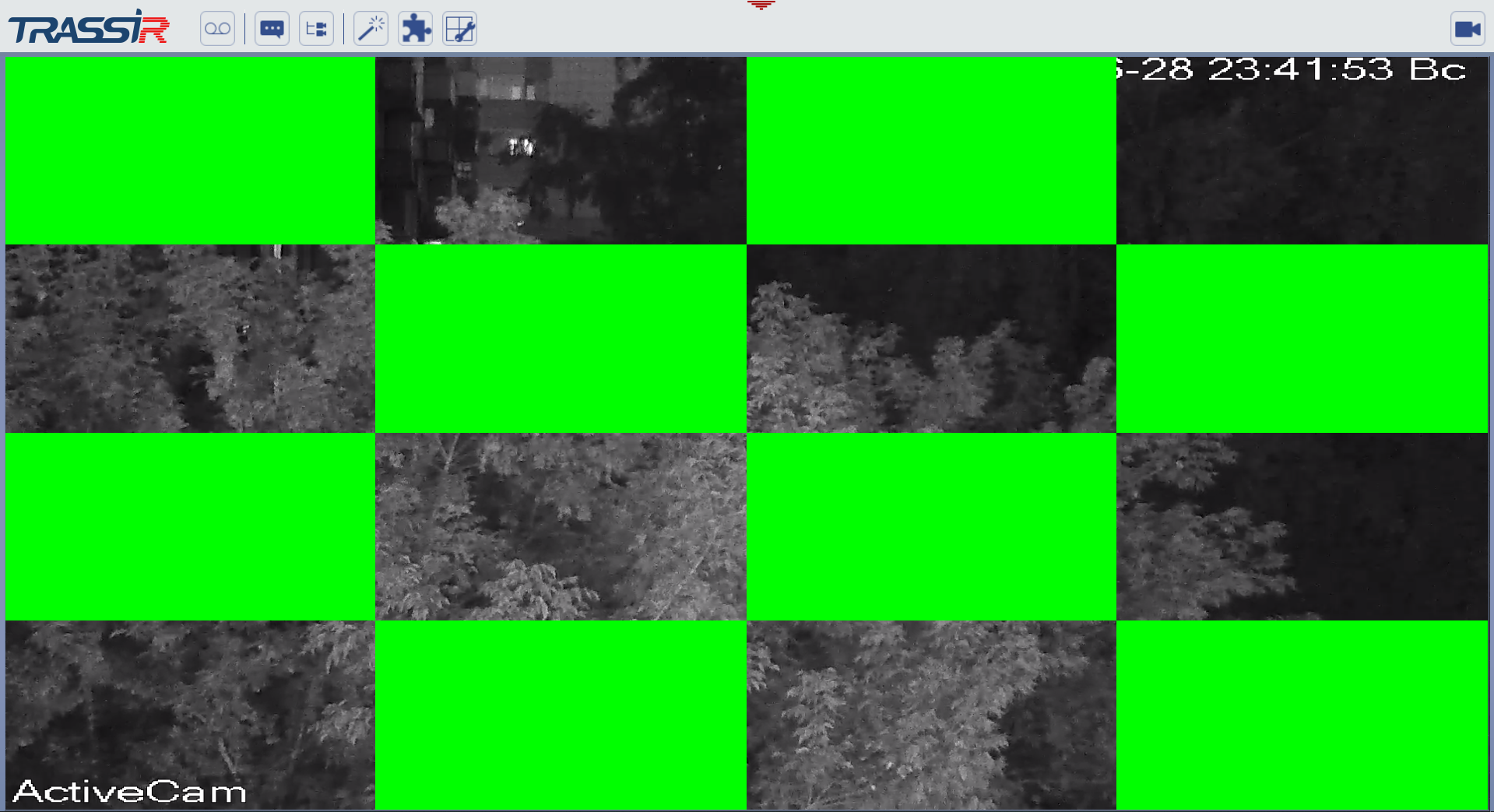

fillrect(xy_1, xy_2, color="#1FC619")
xy_1 (List[int, int])- Top left corner coordinatesxy_2 (List[int, int])- Lower right corner coordinatescolor (str, optional)- Line color,#1FC619 by default
import figures
channel_guid = "uR76TlcA" # Change to guid of your channel
figures.draw(
channel_guid,
figures.fillrect([00, 00], [25, 25], color="#00FF00"),
figures.fillrect([50, 00], [75, 25], color="#00FF00"),
figures.fillrect([25, 25], [50, 50], color="#00FF00"),
figures.fillrect([75, 25], [100, 50], color="#00FF00"),
figures.fillrect([0, 50], [25, 75], color="#00FF00"),
figures.fillrect([50, 50], [75, 75], color="#00FF00"),
figures.fillrect([25, 75], [50, 100], color="#00FF00"),
figures.fillrect([75, 75], [100, 100], color="#00FF00"),
)

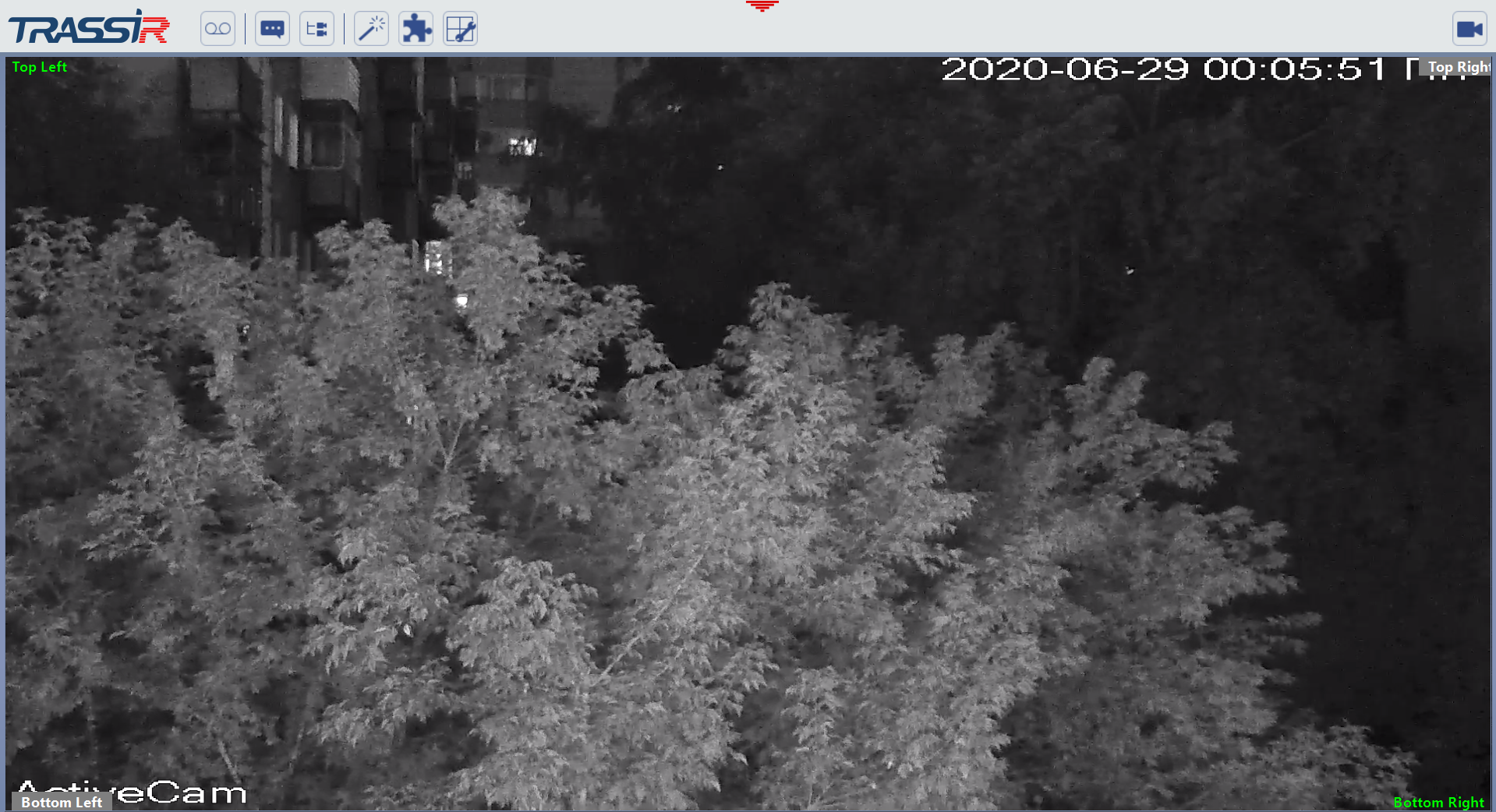

textbox(text, align="TL", fill=True, color="#1FC619")
text (str): Textalign (str, optional): Text position, TL by defaultTL- Top LeftTR- Top RightBL- Bottom LeftBR- Bottm Right
- fill (bool, optional): Fills the background with color if True, True by default
color (str, optional): Text color, #1FC619 by default
import figures
channel_guid = "uR76TlcA" # Change to guid of your channel
figures.draw(
channel_guid,
figures.textbox("Top Left", align="TL", fill=False, color="#00FF00"),
figures.textbox("Top Right", align="TR", fill=True, color="#FFFFFF"),
figures.textbox("Bottom Left", align="BL", fill=True, color="#FFFFFF"),
figures.textbox("Bottom Right", align="BR", fill=False, color="#00FF00"),
)

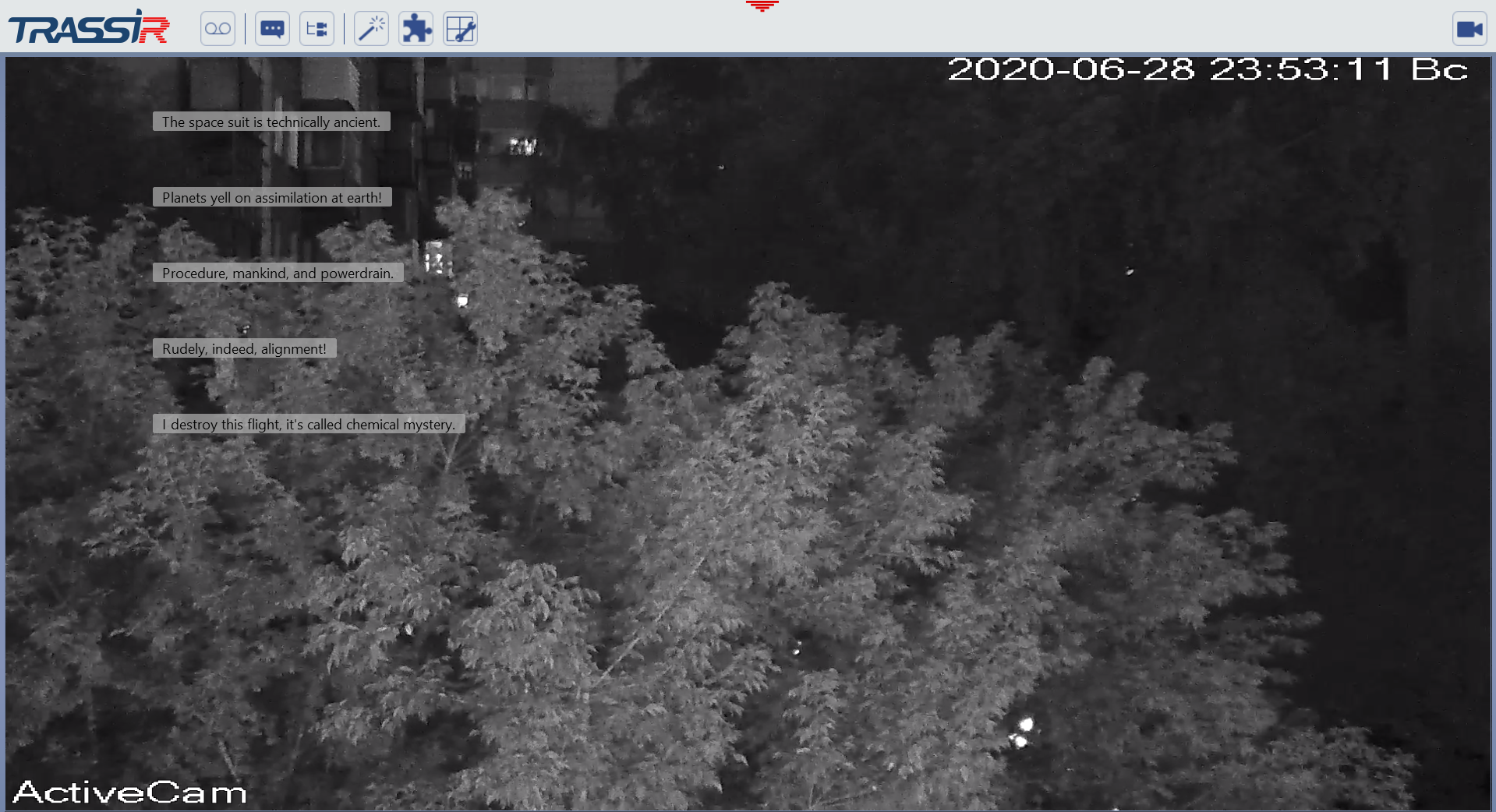

text_ext(xy, text, bg_color="#C5CEC4", font_color="#000000", font_size_px=12)
Text resizing may not work in Trassir version 4.1.1120512 and below
xy (List[int, int]): Coordinates of the text's beginning.text (str): Text.bg_color (str, optional): Background color.font_color (str, optional): Text color.font_size_px (int, optional): Font size.
import figures
channel_guid = "uR76TlcA" # Change to guid of your channel
figures.draw(
channel_guid,
figures.text_ext(
[10, 10],
"The space suit is technically ancient.",
bg_color="#FFFFFF",
font_color="#000000",
),
figures.text_ext(
[10, 20],
"Planets yell on assimilation at earth!",
bg_color="#FFFFFF",
font_color="#000000",
),
figures.text_ext(
[10, 30],
"Procedure, mankind, and powerdrain.",
bg_color="#FFFFFF",
font_color="#000000",
),
figures.text_ext(
[10, 40], "Rudely, indeed, alignment!", bg_color="#FFFFFF", font_color="#000000"
),
figures.text_ext(
[10, 50],
"I destroy this flight, it's called chemical mystery.",
bg_color="#FFFFFF",
font_color="#000000",
),
)

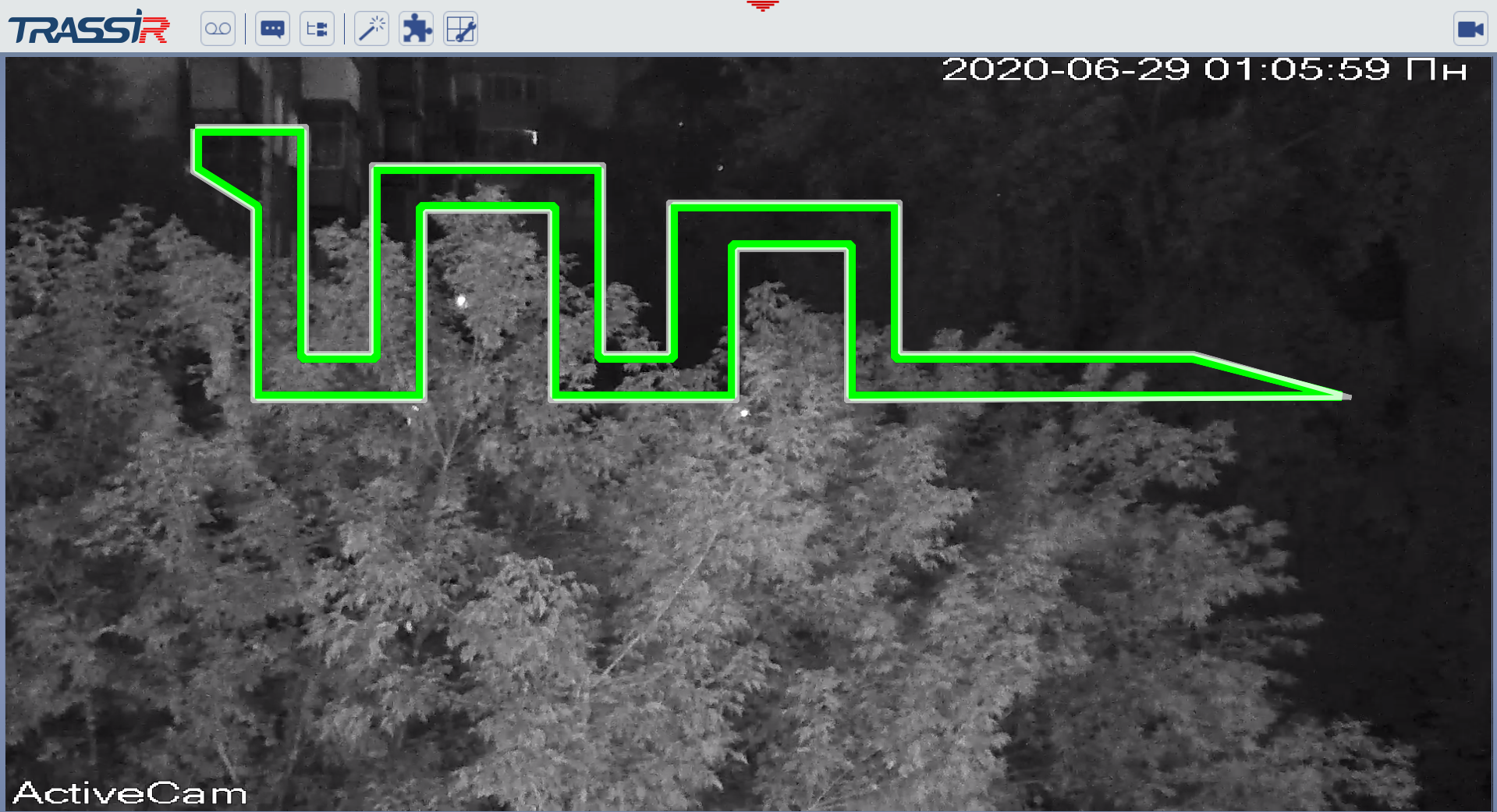

polyline(*points, color="#1FC619", width=2)
points (List[List[int, int]]): List of coordinates of the polyline's points.color (str, optional): Color line, #1FC619 by default.width (int, optional): Line width, 2 by default.
import figures
channel_guid = "uR76TlcA" # Change to guid of your channel
snake_coordinates = [
[13, 10], [20, 10], [20, 40], [25, 40], [25, 15],
[40, 15], [40, 40], [45, 40], [45, 20], [60, 20],
[60, 40], [80, 40], [90, 45], [57, 45], [57, 25],
[49, 25], [49, 45], [37, 45], [37, 20], [28, 20],
[28, 45], [17, 45], [17, 20], [13, 15], [13, 10],
]
figures.draw(
channel_guid,
figures.polyline(
*snake_coordinates,
color="#00FF00",
width=10
)
)

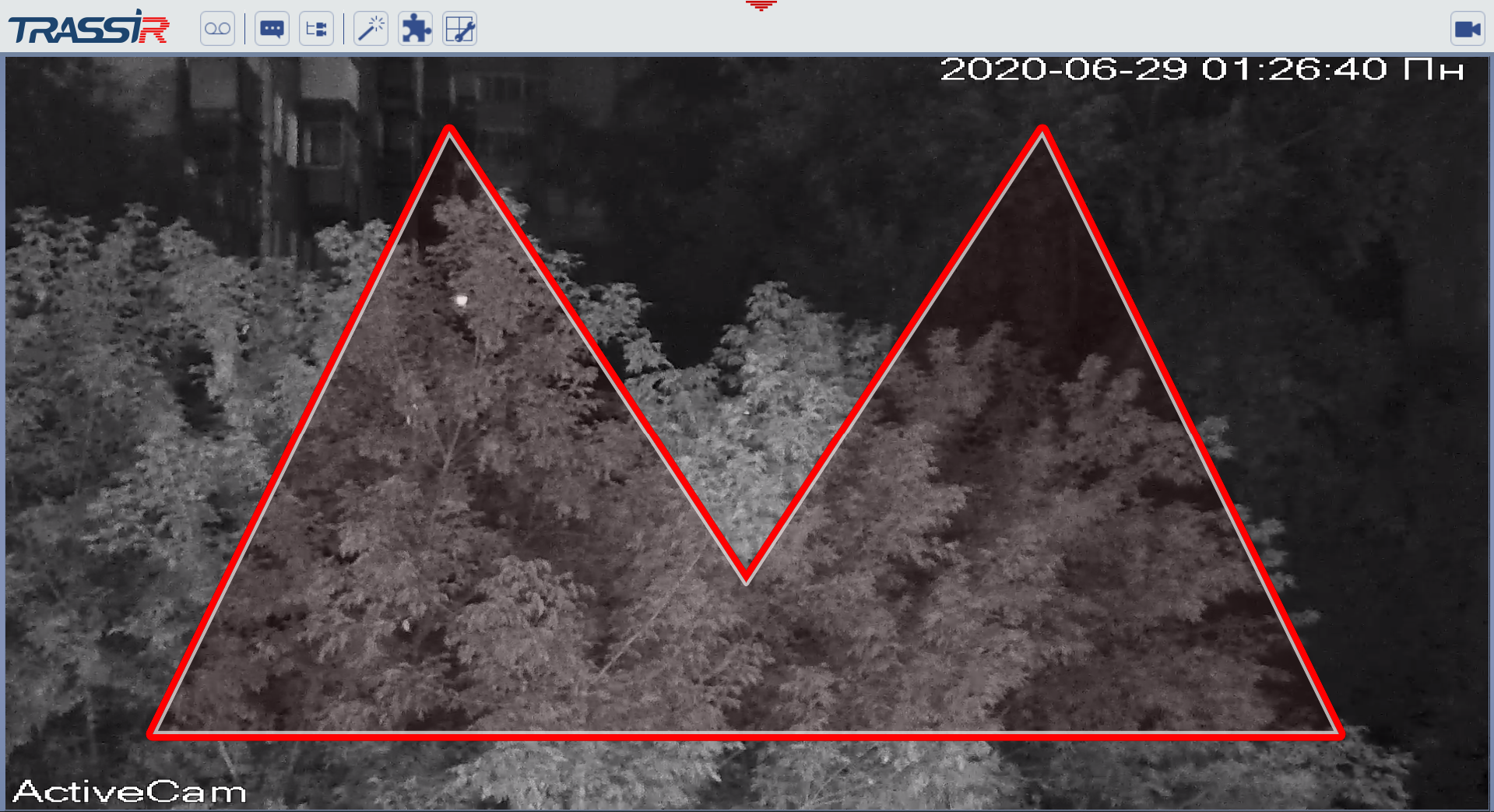

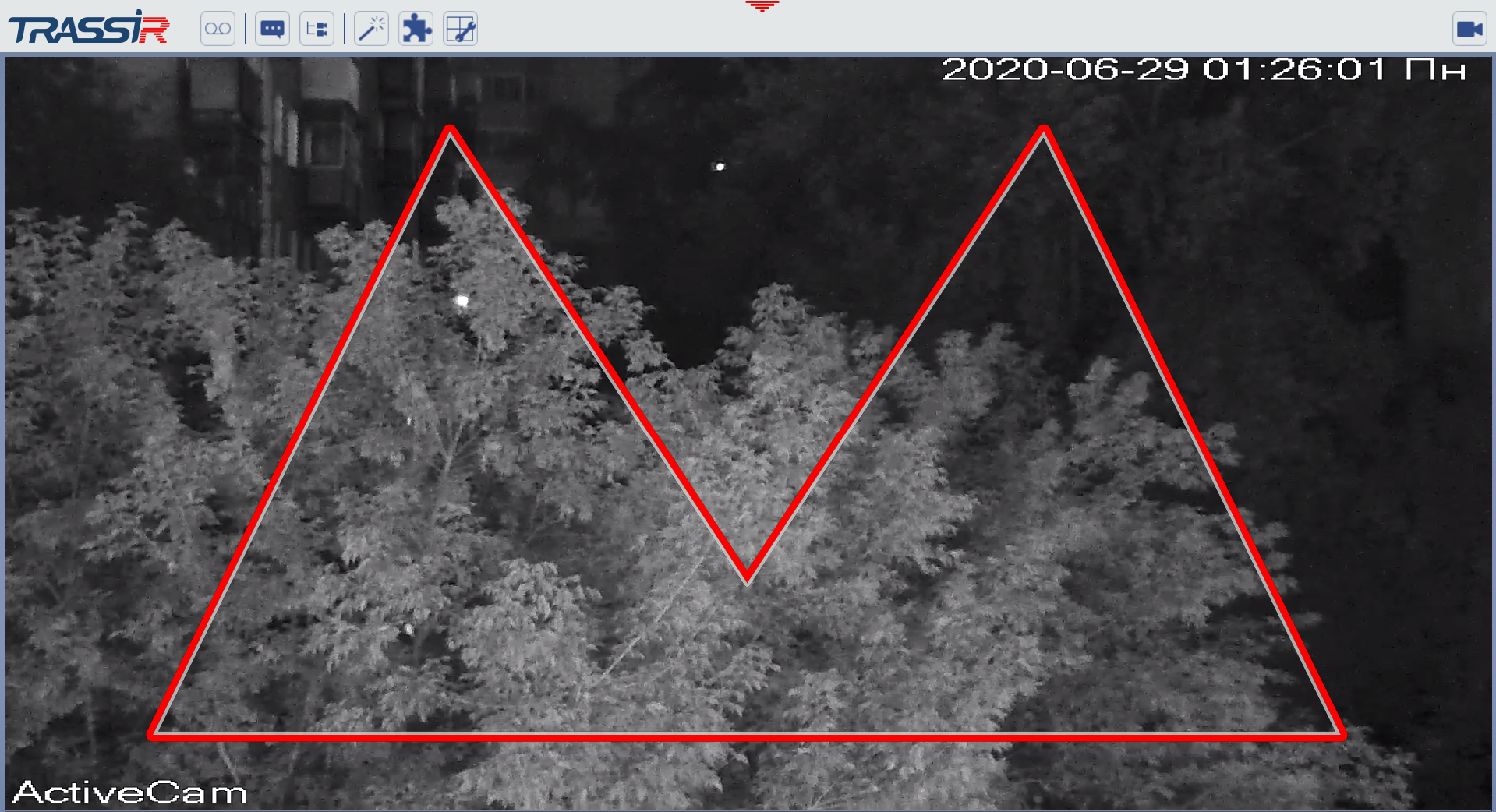

poly(*points, color="#1FC619", width=2, fill=False)
Unlike a broken line, the first and last points of the area automatically connects to each other.
points (List[List[int, int]]): List of coordinates of the polyline's pointscolor (str, optional): Color line,#1FC619 by defaultwidth (int, optional): Line width,2 by defaultfill (bool, optional): Fills inner area with transparent background
import figures
channel_guid = "uR76TlcA" # Change to guid of your channel
figures.draw(
channel_guid,
figures.poly(
[10, 90], [30, 10], [50, 70], [70, 10], [90, 90],
color="#FF0000",
width=7,
fill=False # True
)
)
