resources/gui_and_objects/templates.py

This module provides a convenient interface for working with templates.

Available functions

  • create - Creates new template, raises CreateTemplateError if the template cannot be created
    Function arguments:
    • name (str): Template name
    • content (str, optional): Template content
  • get - Returns an already created template, raises TemplateNotFound if the template cannot be found
    Function arguments:
    • name (str): Template name
  • get_or_create - returns an existing or creates a new template using the create function
    Function arguments:
    • name (str): Template name
    • content (str, optional): Template content

All functions return an object of the GUITemplate class

Class attributes

  • name (str): Template name
  • guid (str): Template guid
  • content (str): Template content
  • shared (bool): True if template is shared

Class methods

  • channels_content: Takes a list of guid channels as arguments.
  • show: Displays the template on the monitor. The monitor number is specified as an optional monitor argument, which by default is 1.
  • delete: Deletes the current template.

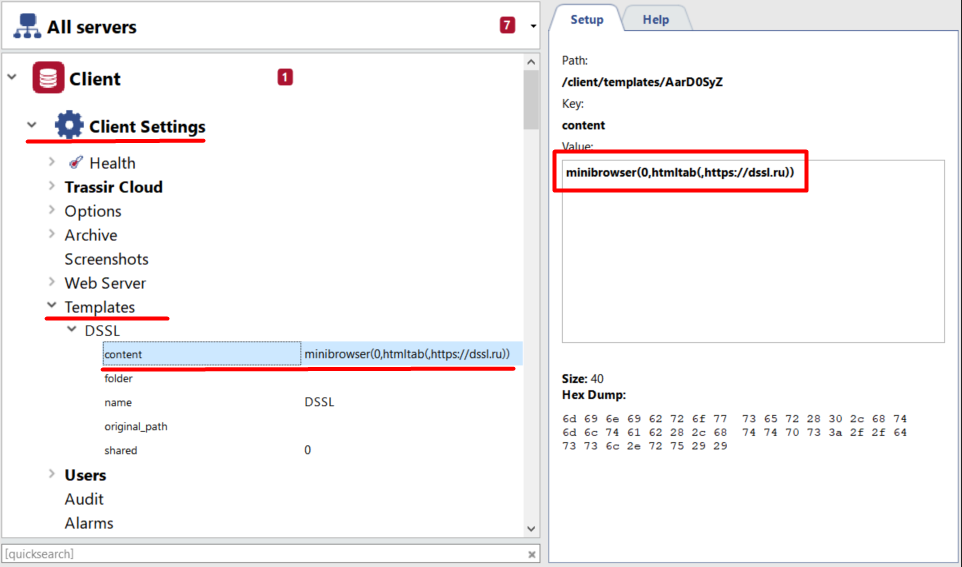

To understand what content needs to be transferred to the template, you can create any template using the Trassir interface and then see the content in the settings, turning on the advanced settings with the F4 key

Example: Template with channels
  • Creating or loading of an existing template named "4 channels"
  • Adding the first 4 channels from all available channels to the template

import host
import templates


all_channels = [guid for _, guid, _, _ in host.objects_list("Channel")]

tmpl = templates.get_or_create("4 channels")
tmpl.channels_content(*all_channels[:4])
